AK300
Multiple Analog Downstream Keyer

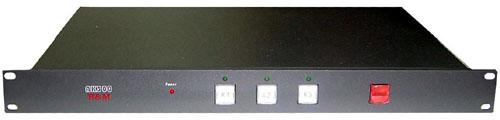

AK300 is a 1-U rack-mountable chassis which is built-in three separate analog linear keyers which is compatible with both NTSC or PAL video standard. With the ability of cuts, mixes and wipe transitions, any CGs or Logos with ALPHA channel could be combined into the main back ground to produce a composite transition.

AK300 provides one channel analog back ground input plus two stand alone preview and program signals output.

With 12-Bit internal processing, AK300 avoids the dentation and flicker problems.

AK300 could detect each of the input key signals, and will be switched to the back ground automatically when there is no any input key signals. In case of no back ground input, AK300 could output the black frame to maintain the valid output.

Features
·
12 Bits internal processing
·
Soft edges and half transparent feature
·Anti-Flickering feature
·10 Bits I/O
·All of 3 linear keyers could be controlled separately, and key-in at the same time
·Provides 3-channel analog composite Fill-In signals
·Two stand alone preview and program signals output
·Provides the ability of the key-in signals preview feature
·Provides A/B vision mixer
·Maintains the valid output when the input failed
·Bypass mode enabled
·RS-232 control interfaces as the optional



                                                                        AK300 Back Panel

Video Specifications

Video Standard PAL Video
 Sample Precision  10 Bits
 Band Width 6 MHz
Key Data Rate 13.5 MHz
Pb & Pr Data Rate 6.75 MHz
Signal to Noise Ratio > 70 dB
 Differential Phase  < 0.8 Degree
 Differential Gain  <0.4%
 K Factor (2T Pulse)  <0.3%
 Chroma Delay  < 2 ns
Input Background Signals 1 channel analog composite video
Input Fill Signals 3 channels analog composite video
Input Key Signals 3 channels ALPHA Keryers
Preview Output Signals 2 channels analog composite video
Program Output Signals 2 channels analog composite video
Input & Output Connectors BNC Connectors
Remote Control Interface RS-232


Mechanical specification

 Chassis Dimension 44.5mm (High) × 310mm (Wide) x 480mm (Long)
Chassis Weight 6 Kg

Electrical specification

Power 220V/50Hz
Power Consumption < 60W

All features, specifications, pricing are subject to change without notice. All rights reserved.
